Modelo: RAS200DMWW ESTUFA ELECTRICA 20" HOTPOINT BLANCA
20" Electric Free-Standing Front-Control Electric Range
APPROX. DIMENSIONS (HxWxD)
41 7/8 H x 19 3/4 W x 26 5/8 D
FEATURES

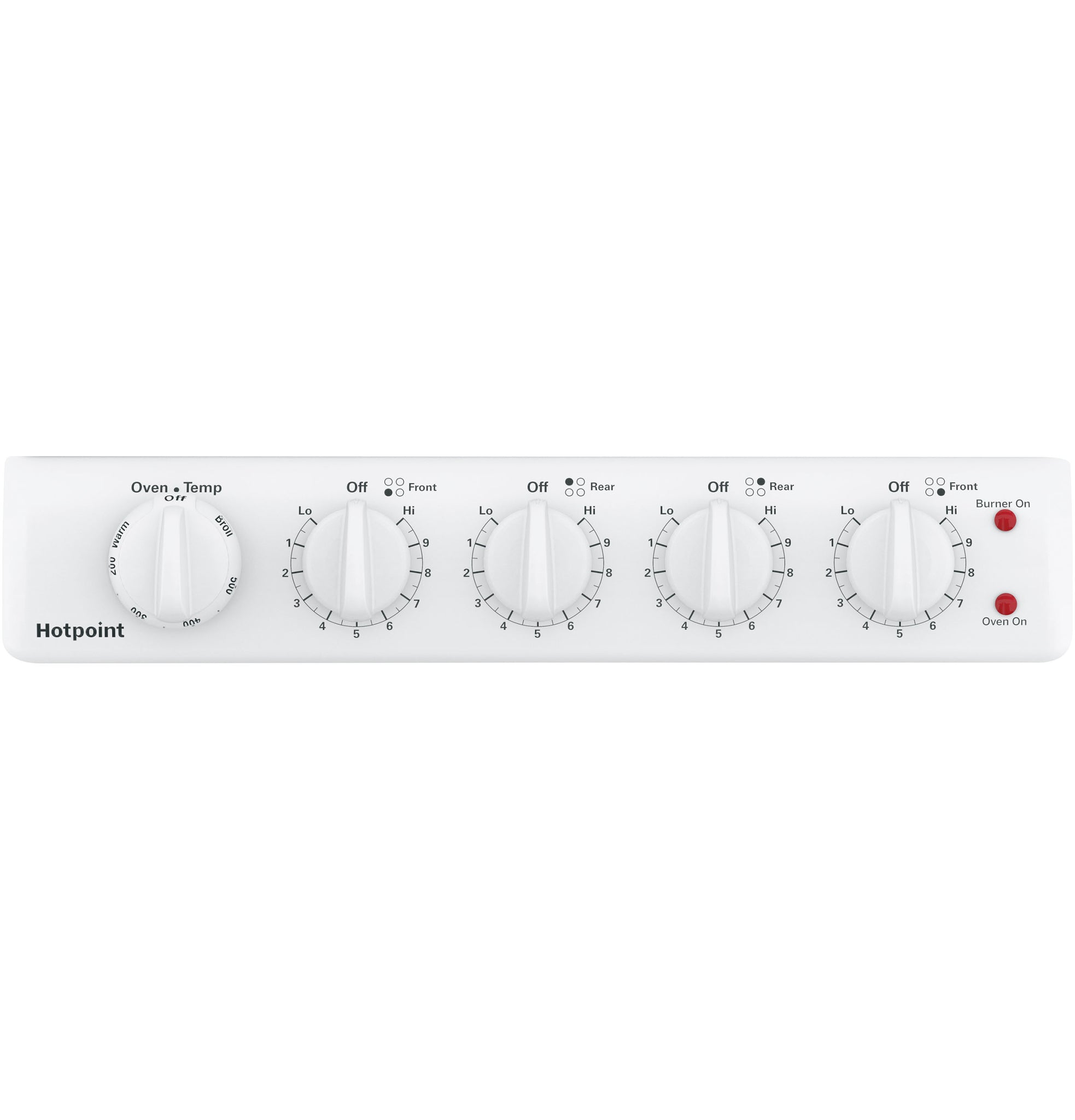

| Control Type | Rotary knobs |
| Leveling System | Easy Level System |
| Product Type | Free-Standing Single Oven |
| Sabbath Mode | Yes |
| Control Location | Front |
| Fuel Type | Electric |
| Cooktop Burner Type | Coil |
| Cooking Technology | Traditional |
| Oven Cooking Modes | Bake Broil |
| Cooktop Surface | Lift-Up Porcelain-Enamel |
| Element - Left Front | 6" 1250W Temp Limiting Coil |
| Element - Left Rear | 6" 1250W Temp Limiting Coil |
| Element - Right Front | 8" 2400W Temp Limiting Coil |
| Element - Right Rear | 6" 1250W Temp Limiting Coil |
| Oven Control Features | Oven "ON" Light |
| Oven Features | 4-Pass Bake Element 4-Pass Broil Element |
| Oven Cleaning Type | Standard Clean |
| Oven Rack Features | 2 Oven Racks |
| Removable One-Piece Drip Bowls | Chrome |
| Cooktop Type | Coil |
| Heating Element "ON" Indicator Light | Yes |
| OU Certified | No |
| Oven Rack Positions (Single or Upper/Lower) | 4 |
CAPACITY
| Total Capacity (cubic feet) | 2.3 cu ft |
APPEARANCE
| Door Swing | Pull-Down |
| Color Appearance | White |
| Handle Color | White |
| Control Knobs | White |
| Textured Steel Side Panels | Yes |
WEIGHTS & DIMENSIONS
| Overall Depth | 26 5/8 in |
| Overall Height | 41 7/8 in |
| Overall Width | 19 3/4 in |
| Approximate Shipping Weight | 83 lb |
| Net Weight | 71 lb |
| Depth Without Handle | 24 5/8 in |
| Cabinet Width | 20 in |
| Depth with Door Open | 44 3/8 in |
| Height to Cooking Surface (in.) | 36 3/4 +/- 1/4 |
| Oven Interior Dimensions (W x H x D) (in.) | 15 x 15-3/8 x 17-1/8 |
POWER / RATINGS
| Electrical Requirements | 208/240V ; 60Hz ; 40A |
| KW Rating at 208V | 7.2 |
| KW Rating at 240V | 9.3 |
| Amp Rating at 208V | 40 |
| Amp Rating at 240V | 40 |
| Bake Wattage | 2000W |
| Broiler Wattage | 2400W |
| Hertz | 60 |
